Q673B Dacromet Bathroom Tube Clamp

Spring Type Action Fuel Hose Pipe Low Pressure Air Tube Clip Clamp

65mn Pressure Clamp Tube Fastener for Fuel Oil Water Pipe
Butterfly Clip Band-Shaped Elastic Tension Hose Clamp
Self Clamping Manganese Steel Spring Band Pipe Clamp for Air Fuel Tube

Finish:	Dacromet Black Dacromet SUS301 Blue-White Zinced Colored Zinced
Availability:

Quantity:



Inquire Add to Basket

Model:
XHX-HC01
Brand:
N/A
Code:
XHX-HC01

Product Description

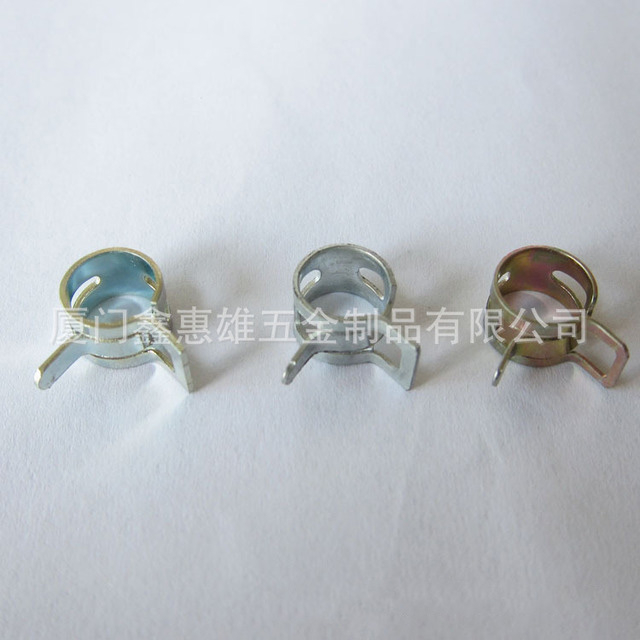

Five Different Finishes:

Dacromet,
Black Dacromet,
SUS301/304 Natural Steel Finish,
Blue-White Zinced,
Colored Zinced

Very few occasions some clients require Environment-friendly black zinced.

Basic Specifications:

Material: manganese steel (65mn), or SUS301, or SUS304.

Thickness: 0.5mm ~ 1.5mm

Width: 6mm ~ 12mm

Inner Diameter: 4mm ~ 38.5mm

Below are some ordinary sizes:

Specification (mm)	Drawing No.	Finish
0.56.04.0	140390415-001	Black Dacromet
0.56.05.5	211220199900462	Dacromet
0.57.04.8(5.0)	211220199900455	Dacromet
0.66.06.5	C-0017	SUS301
0.67.06.8(7.0)	6306060000010	Dacromet
0.67.07.5	2120077-01	Dacromet
0.78.08.0	/	Blue-White Zinced
0.78.08.5	/	Blue-White Zinced
0.78.09.0	/	Colored Zinced
0.78.010.5	/	Colored Zinced
0.78.012.7(13.0)	/	Colored Zinced
0.88.09.5	/	Blue-White Zinced
0.88.010.0	/	Colored Zinced
0.88.011.0	/	Blue-White Zinced
0.88.011.5	/	Dacromet
0.88.011.5	/	Environment-friendly black zinced
0.88.012.0	/	Dacromet
0.81013.5	/	Colored Zinced / Dacromet
0.91015.4	1403K120153	Black Dacromet
1.01015.0	/	Blue-White Zinced
1.21013.0	/	Black Dacromet
1.21223.0	140390599-001	Black Dacromet
1.51238.5	/	Blue-White Zinced
